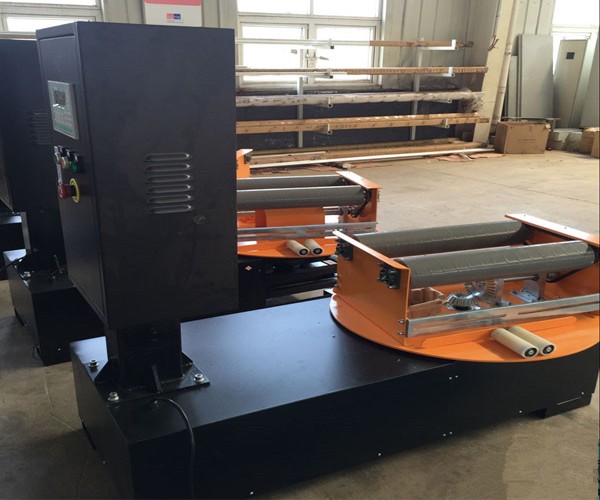

P500F Shrink Wrap Machine

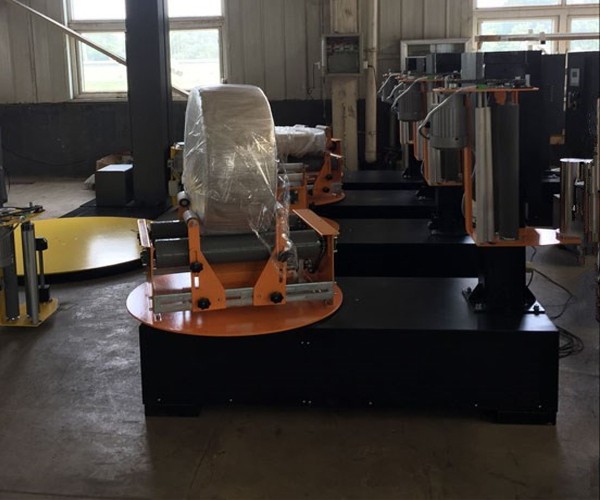

Y Series Reel Wrapper is a machine designed for packing rolls of paper, film, dipped tire cord fabric and similar materials manufactured in reels.
It is ideal for reel axial wrapping across the cylindrical diameter then along the longitudinal axis.
This packing method can form a cocoon type packing.
It is completely Moisture Water & Dust proof packing and protects the products.
It is used in luggage plastic wrap, pallet wrap machine.
Technology Data
Wrapping size |
diameter(200-800mm); width(200-500mm) |
Turntable speed |
0-12 variable speed by frequency changer |
Packing efficiency |
20-40 rolls/hour |
Turntable height |
700mm |
Turntable capacity |
200kg |
Machine shape size |
1460mm×840mm×1492mm |
Power supply |
0.8kw/AC380V |
Film carriage |
Pre-stretch film carriage, up to 250%,automatic feeding film |
Control system |
PLC, wrapping layer, wrapping times is adjustable |
